Description

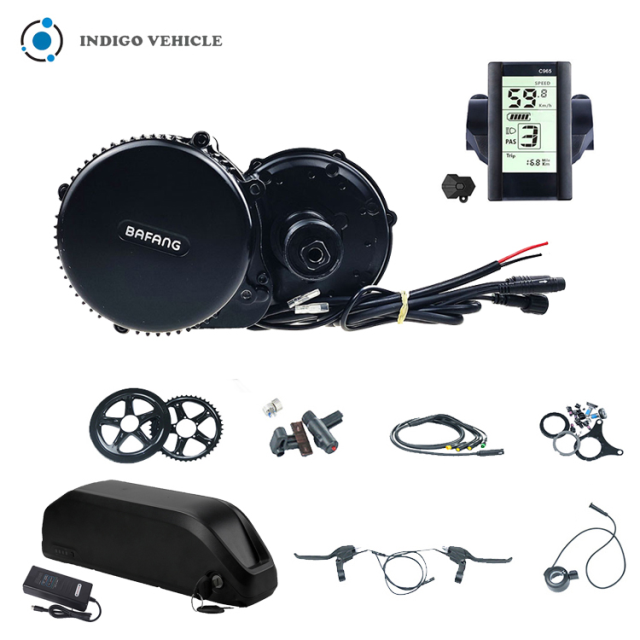

Electric bicycle conversion kit bafang bbs01 mid drive motor best e bike conversion kits

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

1.Lithium Battery

36V:10.4AH-CN/13AH-CN/14.5AH-Samsung/15.6AH-CN /17.4AH-Hailong/19.2AH-LG/24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable (Bullet interface)

Product Paramenters

Motor	36v 350w
Bracket bottom length	68mm
No Load Speed(RPM)	83-87
Load Speed(RPM)	78-83
MAX Torque	80 N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452545cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	3689096/113/141mm

Best e bike conversion kits

Details Images

Mid motor refers to a motor in which the drive motor of an electric assisted bicycle is installed in the middle of the body, that is, the pedal position. The motor is connected to the body and is connected to the rear wheel through a chain to transmit power. At the same time, feet are installed on both sides of the motor. When the motor has no power supply, the cyclist can use the pedal to realize the human riding of the bicycle.

The advantage of the mid motor is that it can keep the front and rear weight balance of the vehicle as much as possible without affecting the action of the shock absorber. The road impact on the motor is also less. The ultra-high integration can reduce unnecessary wiring and tube exposure. In terms of off-road handling, stability, passability, etc., it is better than other bicycle type.

Mid electric bicycles are designed from the overall, top-level, and people-oriented. Mainly lightweight structure, simple shape, low-span oblique curved beam (very convenient to get on and off), stable riding and high efficiency of the whole vehicle. The biggest advantage of a mid-mounted electric bicycle is that its battery, motor and transmission box are all located near the center axis of the bicycle. Therefore, its center of gravity is well balanced, low center of gravity, and low unbalanced resistance during riding, especially when riding without electricity is as easy as a bicycle (built-in gearbox, gear-sprocket combined reduction clutch, maximizing the use of bicycle standards Pieces)

Mid motors are the best solution among mainstream products currently on the market. Most of the best-selling mid-to-high-end models in Europe and America are designed with mid-mounted motors.
