Description

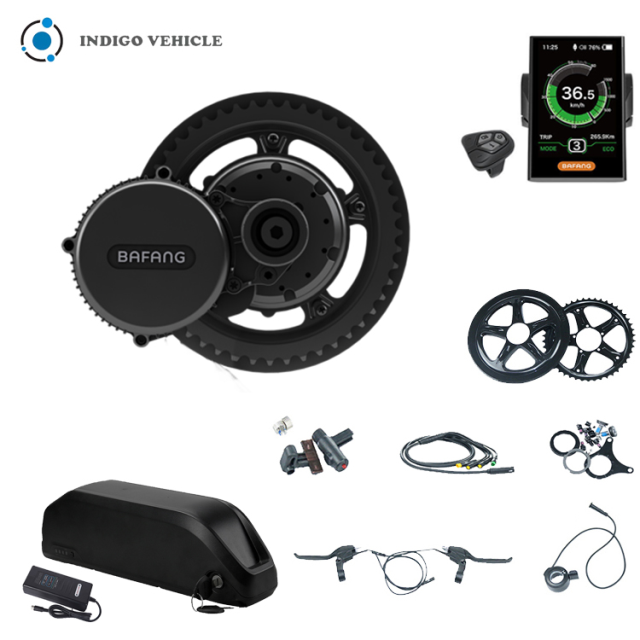

Electric bicycle conversion kit bafang bbs02 mid drive motor electric bike conversion kit with battery

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

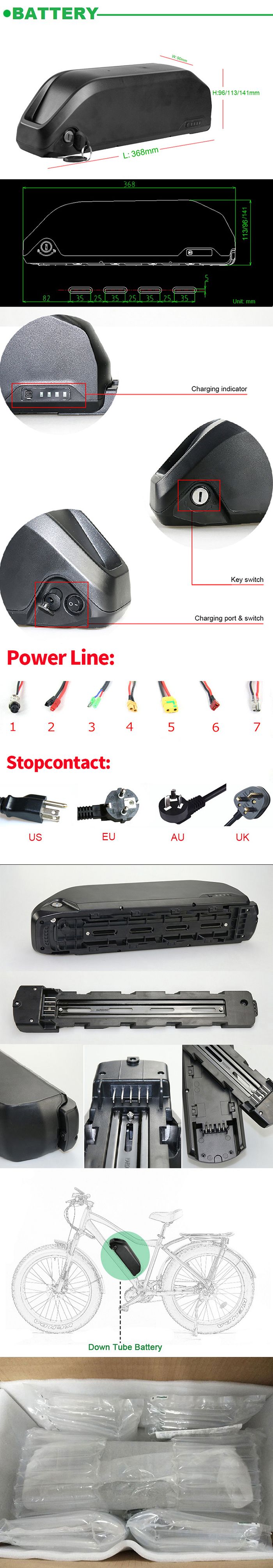

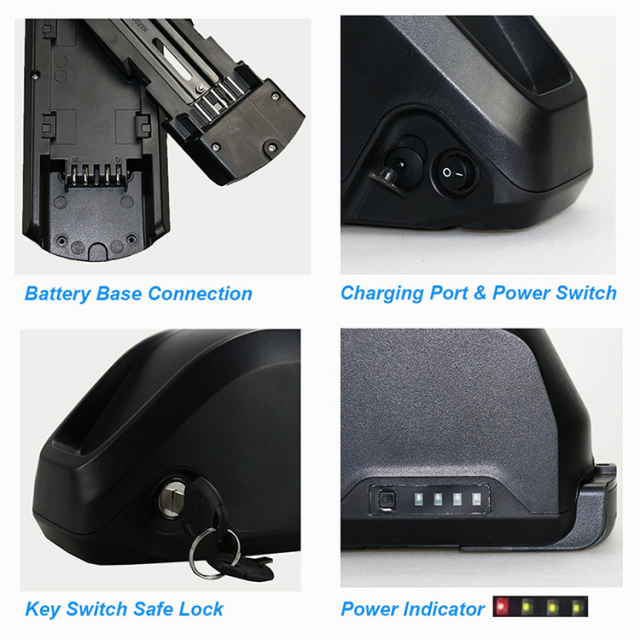

1.Lithium Battery

36V:10.4AH-CN/13AH-CN/14.5AH-Samsung/15.6AH-CN /19.2AH-LG/24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable (Bullet interface)

Product Paramenters

Motor	36v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	120
Load Speed(RPM)	113
MAX Torque	100 N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	3689096/113/141mm

Electric bike conversion kit with battery

We have warehouses in Spain and Belgium in the European Union. Buyers who choose to ship from European warehouses do not need to pay taxes. This saves these buyers. For buyers in other countries, we will take measures to help customers reduce Additional expenses.

Details Images

Mid electric vehicles. It can be assisted or reinforced or fully electric riding. The vehicle has a high bicycle rate and good maintainability, and the vulnerable parts are as easy to repair as a bicycle.

We support online factory inspections or on-site inspections, provide sample services, and have professional technicians explain product details to customers, solve customers’ doubts, explain installation steps and precautions to customers in detail, support one piece of wholesale and online purchase, motors and batteries Provide a one-year warranty and serve every customer carefully.

The motor is responsible for the direct mechanical transmission, acting on the force part of the vehicle pedaling, and its electric energy-kinetic energy conversion rate is generally above 80%. The clutch ratchet designed inside the central motor can completely separate the motor from the central shaft ratchet when the power is off, and there is no magnetic resistance. Therefore, you can ride unimpededly even when you are exercising and riding or when the battery is exhausted. Row.
