Description

Electric bicycle conversion kit bafang bbs02 mid drive motor motor electric bike

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

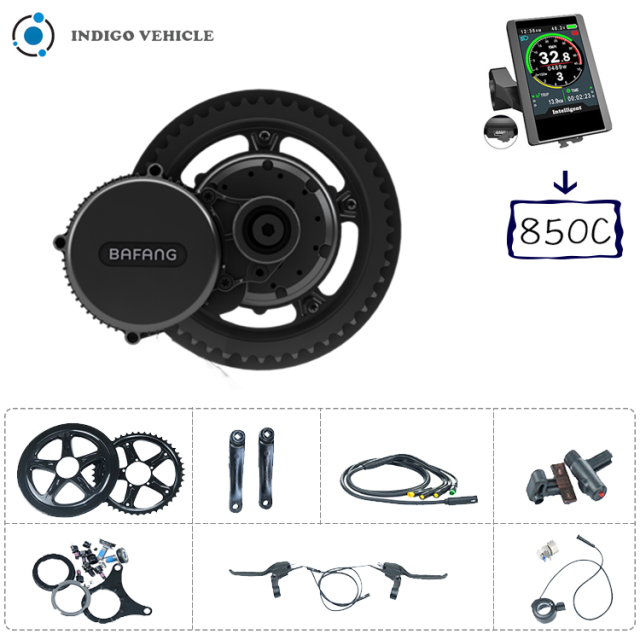

Product list

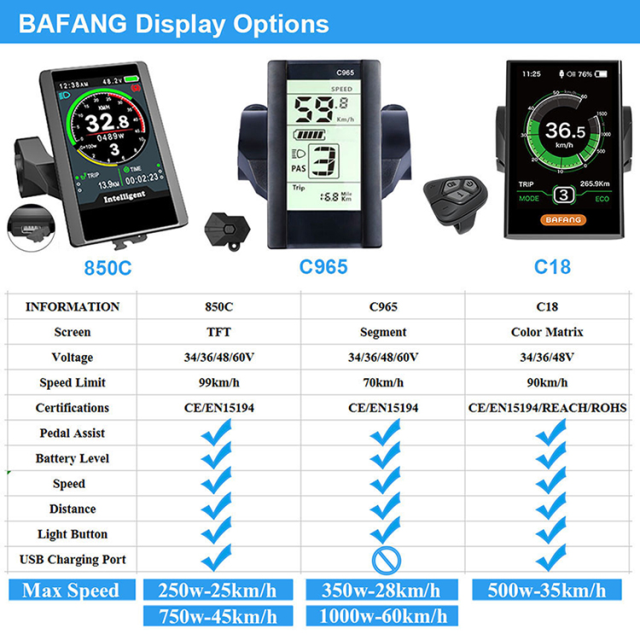

c18(001)

Product Paramenters

Motor	36v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	120
Load Speed(RPM)	113
MAX Torque	100 N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	8
Package size	250-750W: 322525cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

Motor electric bike

Details Images

Mid electric bicycles have been awarded the National Best Design Award as early as in Japan. The main reason is that the mid-mounted electric bicycles have a reasonable structure design and are distinctive, with the best balance of gravity, comfortable riding, and convenient transportation. The same motor (disc type) installed on a mid-mounted vehicle has a longer service life and better effect than a hub-mounted vehicle. More and more cycling enthusiasts favor mid-mounted motors.

Advantages of mid motor:

1. Balanced center of gravity and high safety performance;

2. Riding without resistance when power off;

3. The motor is installed on the bottom bracket of the frame, which does not affect the upgrade of the whole vehicle;

4. Strong climbing ability;

5. Long driving distance, longer cycle life on flat ground;

6. Large torque;

7. Low noise;

8. High cost performance.

In terms of safety, electric bicycles have 8 important protection functions such as balance function, overvoltage protection, overshoot protection, overdischarge protection, overcurrent protection, short circuit protection, temperature protection, and anti-reverse charging.

This mid motor system places the power output source at the center of the bicycle and adopts a concentric shaft output structure, which retains the most traditional transmission system of the bicycle. It not only places the motor in the most reasonable middle part in terms of the weight distribution of the whole vehicle, but also improves the overall The structure of the vehicle and the safety during riding, and when equipped with a rear-wheel transmission system, it effectively improves the climbing ability of the vehicle.
