Description

Electric bicycle conversion kit bafang bbs02 mid drive motor bafang bbs02 500w

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

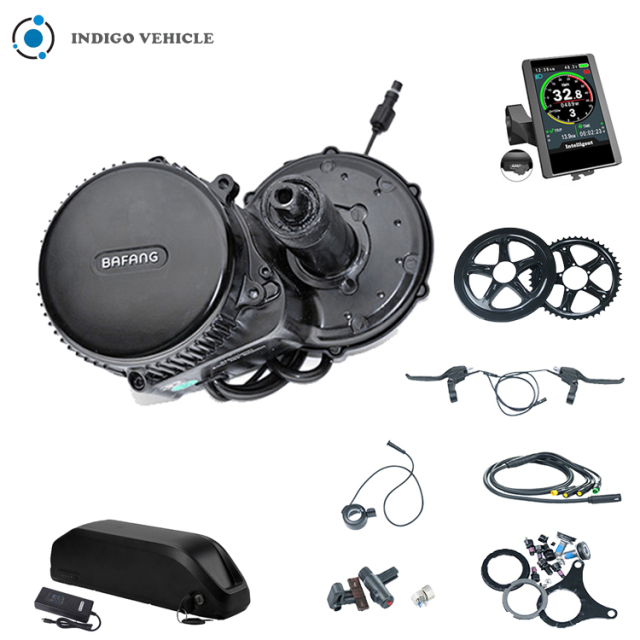

Product list

c18(001)

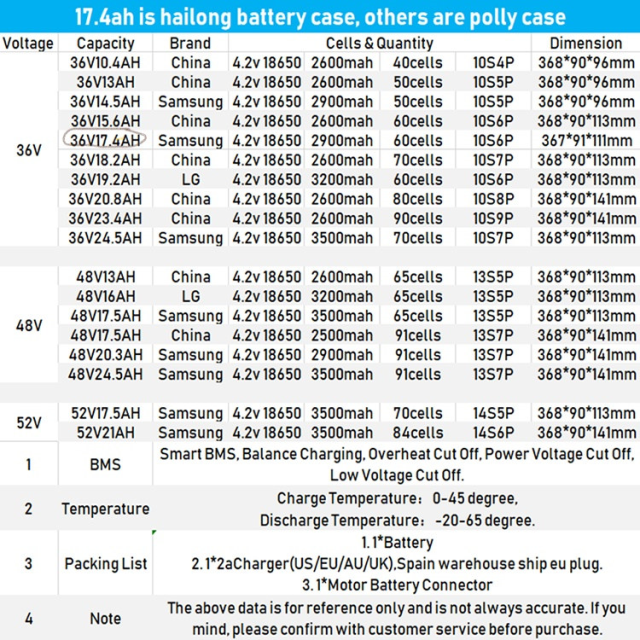

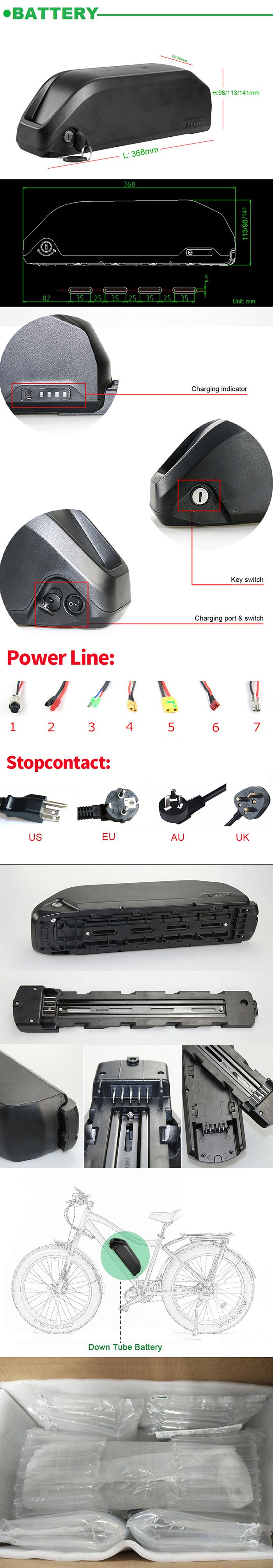

1.Lithium Battery

48V:16AH-LG

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	126
Load Speed(RPM)	118
MAX Torque	100N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 451045cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	36890113mm

Bafang bbs02 500w

The mid motor has speed sensor and built-in controller; it has high efficiency, low power consumption and long driving mileage. 1. Motor operating conditions The motor should be able to work normally under the following environmental conditions: 1. Ambient temperature: (-25—+55) ℃; 2. Relative humidity: (15—95) %RH.

Details Images
