Description

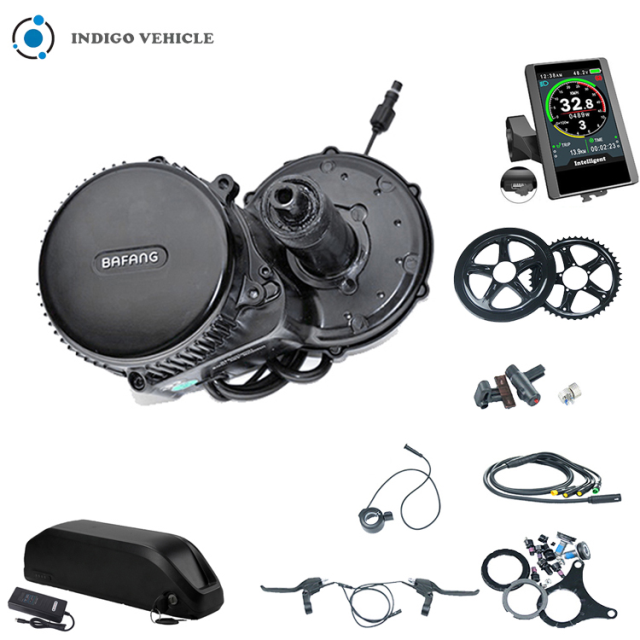

Electric bicycle conversion kit bafang bbs02 mid drive motore e bike conversion kit with battery

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

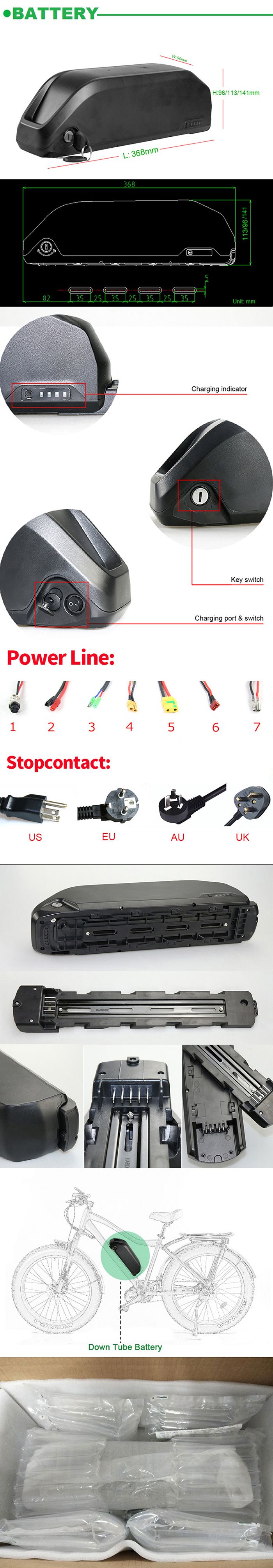

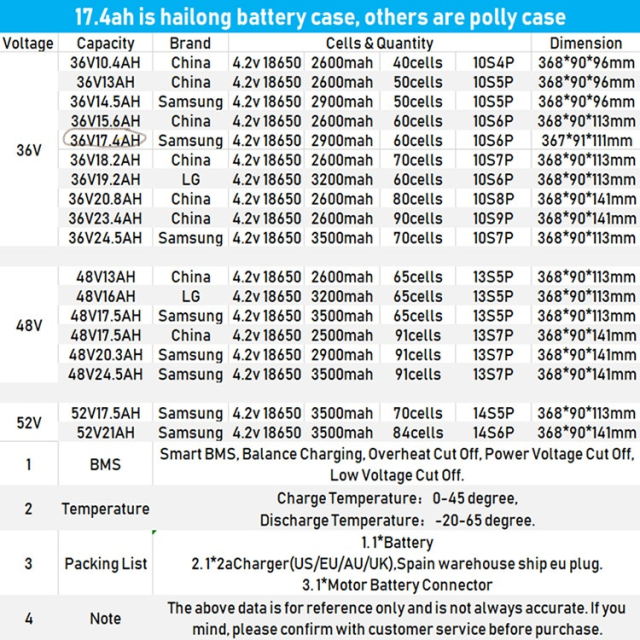

1.Lithium Battery

48V: 17.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	126
Load Speed(RPM)	118
MAX Torque	100N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	36890113mm

E bike conversion kit with battery

Generally, the box with the middle motor has a very high defense force, and can generally reach a protection level of IP65 or higher. When the motor is running, it can completely resist foreign objects and dust intrusion, as well as low-pressure water jets at any angle.

Details Images

The company is positioned in the high-end market, introducing advanced European industrial design concepts, serving customers with high-quality products, occupying an important position in the international market, and becoming one of the leading suppliers of drive systems in the industry. The production area has parts warehouse, plastic parts area, net area, flip line, formal line, inspection area, packing area, finished product warehouse.

Advantages of mid motor:

1. Balanced center of gravity and high safety performance;

2. Riding without resistance when power off;

3. The motor is installed on the bottom bracket of the frame, which does not affect the upgrade of the whole vehicle;

4. Strong climbing ability;

5. Long driving distance, longer cycle life on flat ground;

6. Large torque;

7. Low noise;

8. High cost performance.
