Description

Electric bicycle conversion kit bafang bbs02 mid drive motor electric kit for bicycle

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

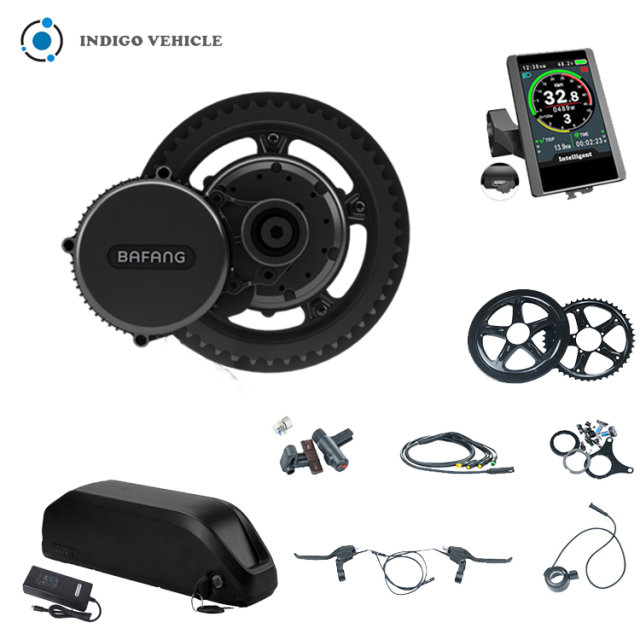

Product list

c18(001)

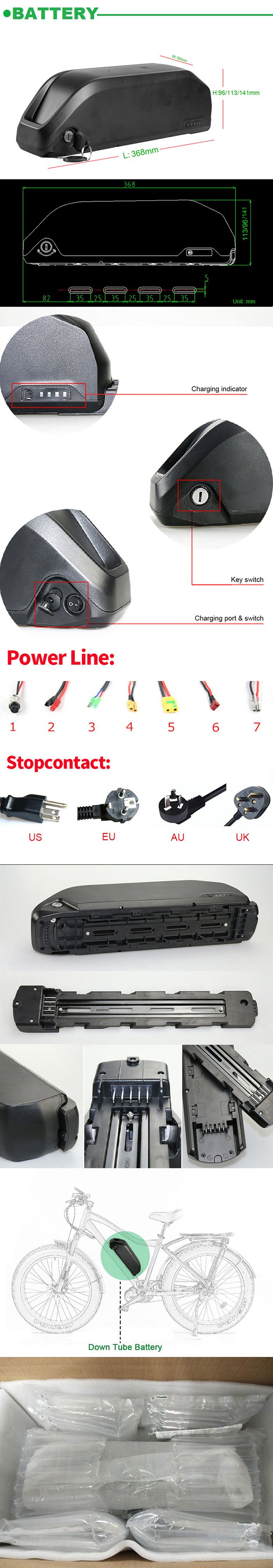

1.Lithium Battery

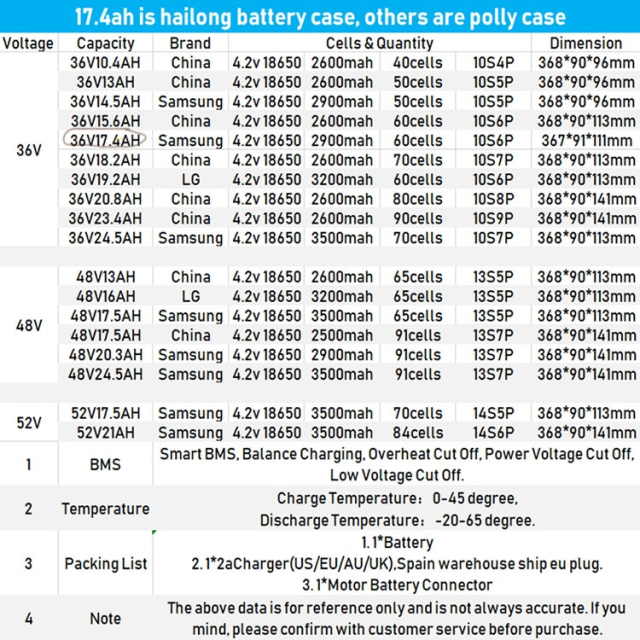

48V:13AH-CN/16AH-LG/17.5AH-Samsung/17.5AH-CN/20.3AH-Samsung/24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	126
Load Speed(RPM)	118
MAX Torque	100N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Display	850C
Gross weight(kg)	12
Package size	250-750W: 452540cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

Electric kit for bicycle

Details Images

The mid motor also has its own powerful advantages. The mid motor can change speed conditions and has a good controllability. At the same time, the torque is large, the acceleration is fast, and the climbing ability is strong. The center of gravity of the mid-mounted motor is in the middle of the vehicle. The effect of front and rear balance, for front and rear shock absorption, the load is relatively balanced, and it can complete high-speed bending and other actions. It is a powerful motor
