Electric bicycle conversion kit bafang bbs02 mid drive motor 750w electric bike kit

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

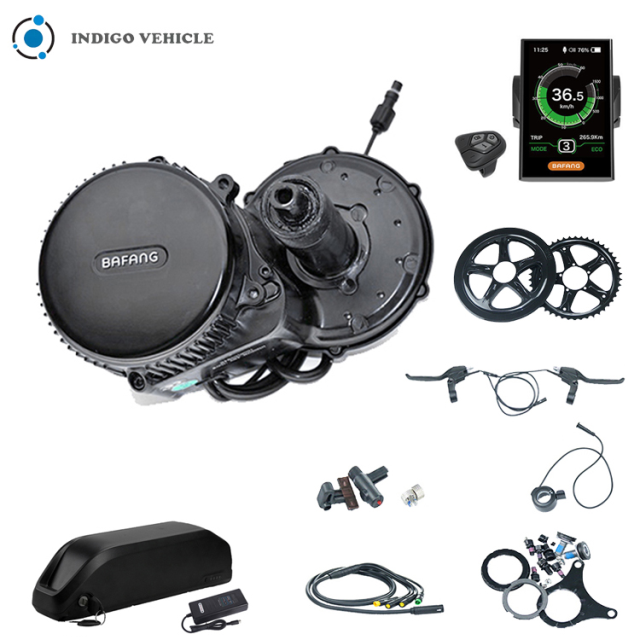

Product list

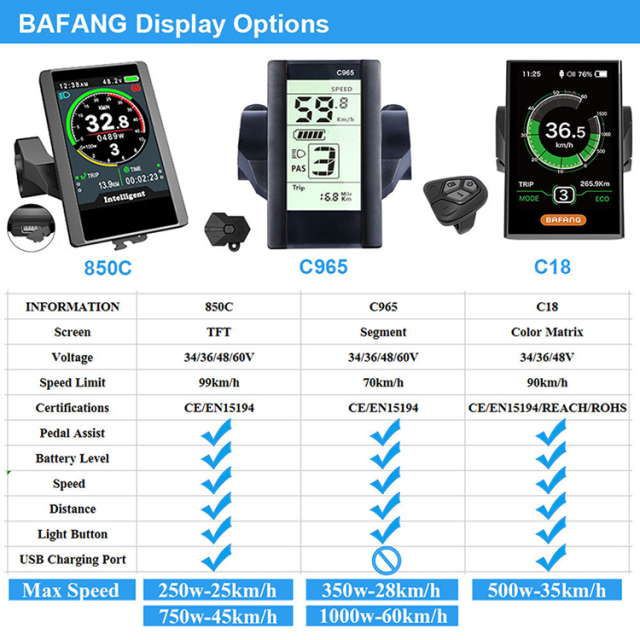

c18(001)

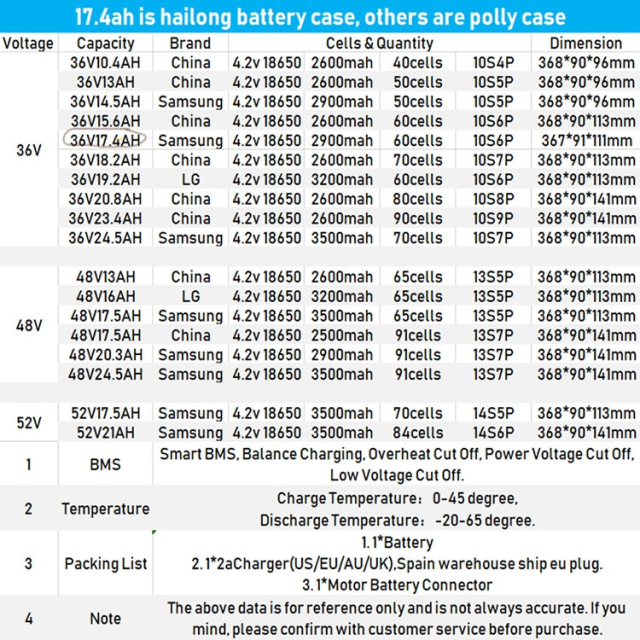

1.Lithium Battery

48V: 24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 750w
Bracket bottom length	68mm
No Load Speed(RPM)	140-160
Load Speed(RPM)	120-135
MAX Torque	160N.m
Efficiency (%)	≥ 85%
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

750w electric bike kit

Details Images

Hangzhou Indigo Intelligent Technology Co., Ltd. is an integrated industry and trade company with foreign trade sales experience. It has a professional technical team and an excellent sales team; it can provide customers with electric system solutions in the shortest time. The company has been adhering to the concept of "serving customers", supporting OEM and ODM customization, and supporting samples and small batch orders. The products sold have passed the EU CE certification, EN15194 certification, ROHS certification, and TS09001 quality certification. Participate in domestic and foreign exhibitions every year, understand the market situation for the first time, and update your products according to the market situation. Professional after-sales service, so that customers have a better product experience.

Mid electric bicycle. It can be assisted or reinforced or fully electric riding. The vehicle has a high bicycle rate and good maintainability. The vulnerable parts are as easy to repair as a bicycle. Another unique advantage is that it can achieve mechanical multi-stage shifting and dual speed regulation (the rear axle can be equipped with a mechanical transmission like an ordinary bicycle. This is impossible to achieve in a hub-type electric bicycle) so that the motor efficiency is always at the highest efficiency Area work. In different road conditions and windy days, it can shift gears to avoid the impact of high current. In the mechanical low gear, the climbing force will be greater.
