Description

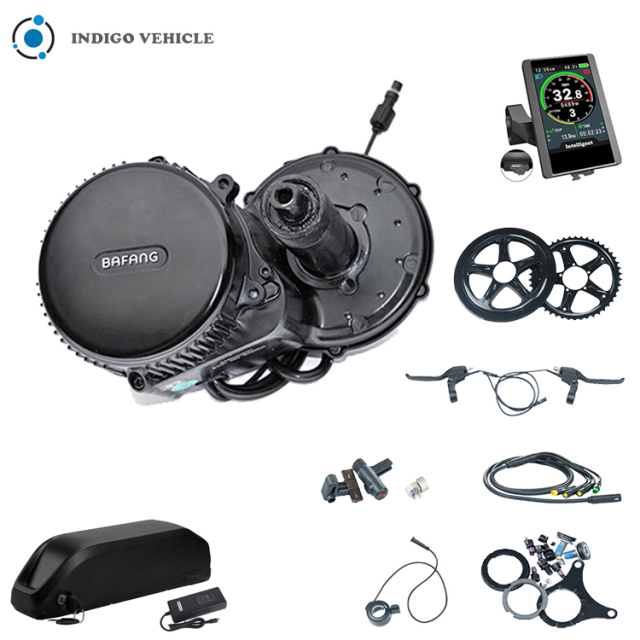

Electric bicycle conversion kit bafang bbs02 mid drive motor bafang 750w

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

1.Lithium Battery

48V: 17.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 750w
Bracket bottom length	68mm
No Load Speed(RPM)	140-160
Load Speed(RPM)	120-135
MAX Torque	160N.m
Efficiency (%)	≥ 85%
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	36890113mm

Bafang 750w

Details Images

Large torque, fast start, wheels can slide like a bicycle, suitable for mountainous areas, low speed, and frequent urban start acceleration, braking energy saving

The mid motor can change speed conditions, has good controllability, fast acceleration, and strong climbing ability. The center-mounted motor has a center of gravity in the middle of the vehicle. When the vehicle is driving fast, it can play a role in front and rear balance. For front and rear shock absorption, the load bearing is relatively balanced,

The central motor has high power and good heat dissipation

The mid motor has transmission loss and waste of electricity. The advantage of this feature in terms of competition is that it can be connected to the gearbox, or can be adjusted at will to change the ratio of speed to torque.

This mid motor system places the power output source at the center of the bicycle and adopts a concentric shaft output structure, which retains the most traditional transmission system of the bicycle. It not only places the motor in the most reasonable middle part in terms of the weight distribution of the whole vehicle, but also improves the overall The structure of the vehicle and the safety during riding, and when equipped with a rear-wheel transmission system, it effectively improves the climbing ability of the vehicle.

Mid motors are the best solution among mainstream products currently on the market. Most of the best-selling mid-to-high-end models in Europe and America are designed with mid-mounted motors.
