Description

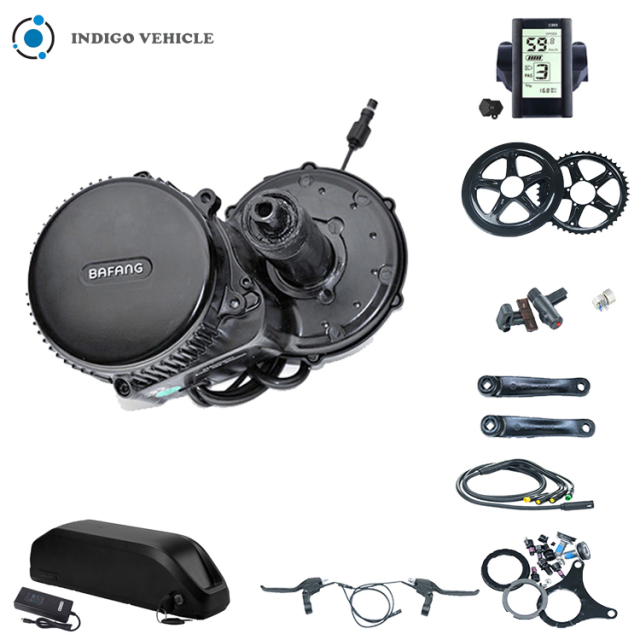

Electric bicycle conversion kit bafang bbs02 mid drive motor diy electric bike kit

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

1.Lithium Battery

48V: 17.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 750w
Bracket bottom length	68mm
No Load Speed(RPM)	140-160
Load Speed(RPM)	120-135
MAX Torque	160N.m
Efficiency (%)	≥ 85%
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	36890113mm

Diy electric bike kit

The center of gravity of the mid motor is in the middle of the vehicle. Since the motor does not directly touch the ground, it is transmitted to the motor through a shock absorber during vibration. Therefore, the mid-mounted motor has better handling and stability on bumpy roads, due to the difference in vehicle balance. , The power of the central motor can be made very large.

Details Images

We support online factory inspections or on-site inspections, provide sample services, and have professional technicians explain product details to customers, solve customers’ doubts, explain installation steps and precautions to customers in detail, support one piece of wholesale and online purchase, motors and batteries Provide a one-year warranty and serve every customer carefully.

Mid motor electric bicycles are designed from the overall, top-level, and people-oriented. Mainly lightweight structure, simple shape, low-span oblique curved beam (very convenient to get on and off), stable riding and high efficiency of the whole vehicle. The biggest advantage of a mid-mounted electric bicycle is that its battery, motor and transmission box are all located near the center axis of the bicycle. Therefore, its center of gravity is well balanced, low center of gravity, and low unbalanced resistance during riding, especially when riding without electricity is as easy as a bicycle (built-in gearbox, gear-sprocket combined reduction clutch, maximizing the use of bicycle standards Pieces)
