Description

Electric bicycle conversion kit bafang bbs02 mid drive motor ebike kits

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

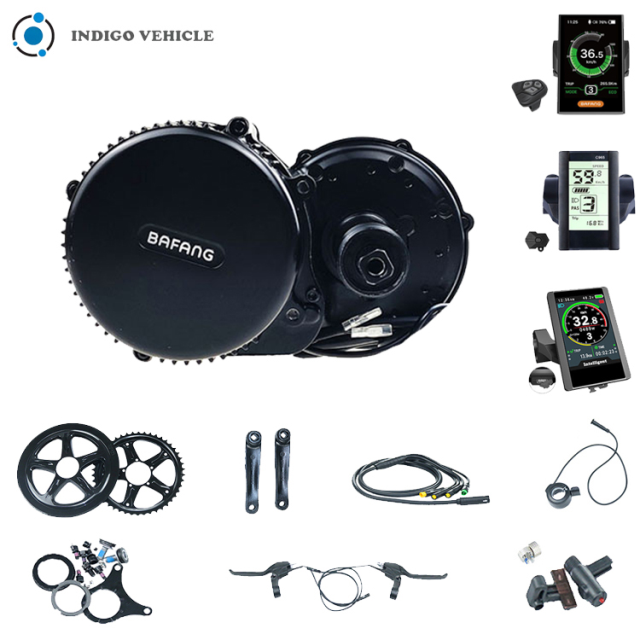

Product list

c18(001)

Product Paramenters

Motor	48v 750w
Bracket bottom length	68mm
No Load Speed(RPM)	140-160
Load Speed(RPM)	120-135
MAX Torque	160N.m
Efficiency (%)	≥ 85%
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	8
Package size	250-750W: 322525cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

Ebike kits

Generally, the box with the middle motor has a very high defense force, and can generally reach a protection level of IP65 or higher. When the motor is running, it can completely resist foreign objects and dust intrusion, as well as low-pressure water jets at any angle.

Details Images

Mid electric vehicle,. You can ride with booster or booster or all electric. The whole bicycle has a high rate of change, good maintainability, and it is very convenient to maintain the wearing parts as well as the bicycle. In addition, the unique advantage is that it can achieve mechanical multistage shift, double speed regulation (in the rear axle can be the same as the ordinary bicycle, mechanical transmission installation. This makes the motor always work in the highest efficiency zone. In different road conditions and windy days can shift gears to drive, to avoid the impact of large current. When the machine is in low gear, the force of climbing will be greater.

As a rapidly developing enterprise, the company has introduced ERP, CRM and other information management software to make information management intelligent. Company semi-automatic production line, toward intelligent production; The company independently develops five torque/speed sensors, becoming one of the few enterprises with independent production capacity of torque sensors in the world; Continued original design capability and lean manufacturing capability have significantly enhanced the company's reputation and brand awareness in the industry.
