Description

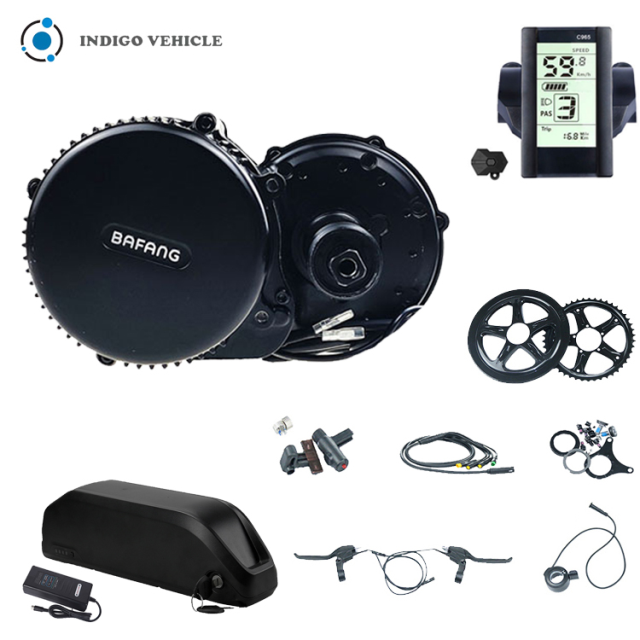

Electric bicycle conversion kit bafang bbs02 mid drive motor electric bike motor kit

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

c18(001)

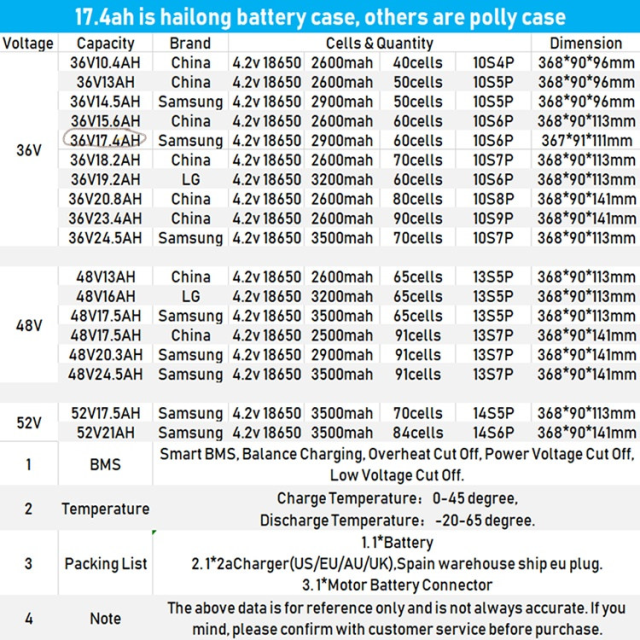

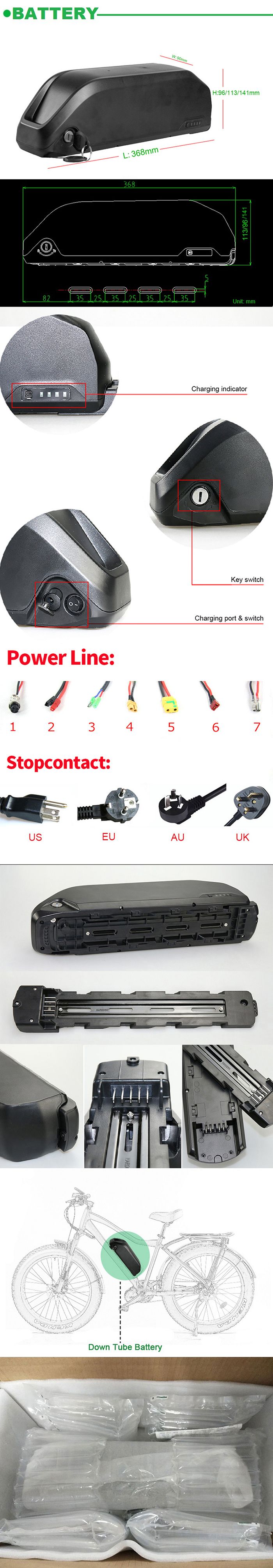

1.Lithium Battery

48V:13AH-CN/16AH-LG/17.5AH-Samsung/17.5AH-CN/20.3AH-Samsung/24.5AH-Samsung

52V:17.5AH-Samsung/21AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable(Anderson / Bullet interface)

Product Paramenters

Motor	48v 750w
Bracket bottom length	68mm
No Load Speed(RPM)	140-160
Load Speed(RPM)	120-135
MAX Torque	160N.m
Efficiency (%)	≥ 85%
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452040cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	3689096/113/141mm

Electric bike motor kit

The advantage of the mid motor is that it can maintain the front and rear balance of the electric vehicle to the greatest extent, and will not affect the shock absorption. The motor is less impacted by the road on the bumpy road.

Details Images

Our founder has more than 15 years of rich experience in the electric bicycle industry. We attach great importance to the cultivation of professionals and have built a sound R & D team, test team and after-sales team.

The advantage of a mid-mounted motor is that it maximizes the vehicle's front and rear balance without compromising shock absorption and is less vulnerable to road impact on bumpy roads.

In the wiring aspect, because of the ultra-high degree of integration, it can reduce the leakage of the wire tube, so in the bumpy road, the handling, stability, passability and other aspects are better than the electric vehicle with hub motor

We will deliver the goods within 7 days, generally 1-3 days. For customers who require delivery from the European warehouse, the products can be received very quickly. For customers in other countries, we will arrange shipment as soon as possible, and we can also choose the designated express according to the customer's requirements.
