Description

Electric bicycle conversion kit bafang bbs01 mid drive motor e bike kits

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

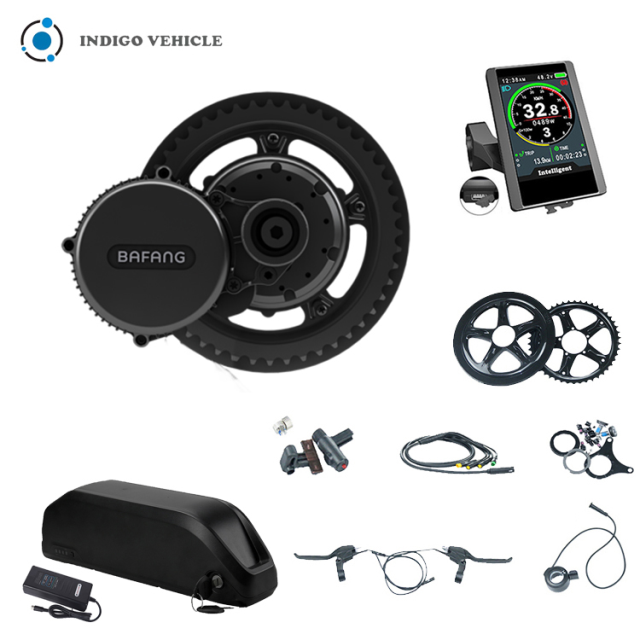

Product list

c18(001)

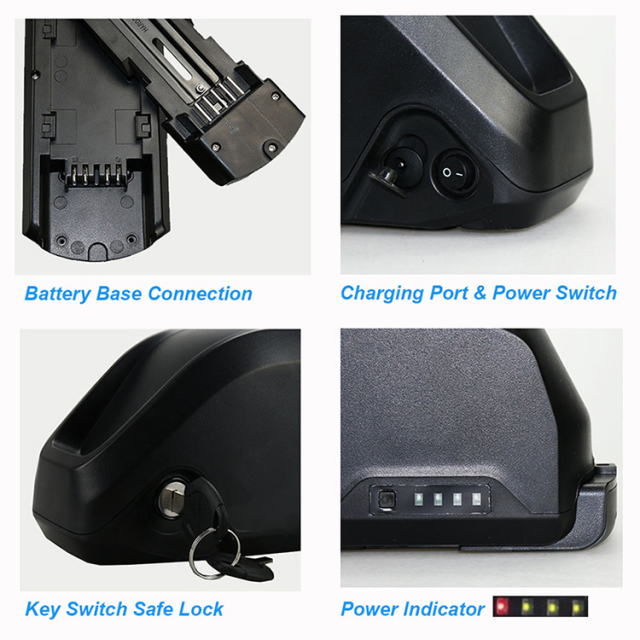

1.Lithium Battery

36V:10.4AH-CN/13AH-CN/14.5AH-Samsung/15.6AH-CN /17.4AH-Hailong/19.2AH-LG/24.5AH-Samsung

2.Charger:US/UK/AU/EU

3.Motor Battery Connection Cable (Bullet interface)

Product Paramenters

Motor	36v 250w
Bracket bottom length	68mm
No Load Speed(RPM)	83-87
Load Speed(RPM)	78-83
MAX Torque	80 N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Gross weight(kg)	12
Package size	250-750W: 452545cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9
Battery size	3689096/113/141mm

E bike kits

Details Images

Mid motor

It is applicable to a wide range of models, covering almost all models. You only need to replace the bottom bracket. If you don’t want to use it, you can restore it in ten minutes, and you can complete it yourself.

Integrated controller, speed sensor, waterproof cable, overall beautiful appearance.

Built-in clutch, good riding comfort, no magnetic resistance when sliding.

The instrument has many styles, complete functions and can be set.

The weight of the mid-mounted motor is fixed. After the whole vehicle is assembled, the weight distribution is reasonable, effectively ensuring the strength of the frame.

The motor torque can reach 80 N.m-160 N.m. With the rear wheel transmission, the torque is doubled and the climbing performance is strong.

We support online factory inspections or on-site inspections, provide sample services, and have professional technicians explain product details to customers, solve customers’ doubts, explain installation steps and precautions to customers in detail, support one piece of wholesale and online purchase, motors and batteries Provide a one-year warranty and serve every customer carefully.

Take the user as the center, meet the needs of users as the principle, and implement family-oriented services. React quickly and act immediately. In a short time, use effective methods to provide users with satisfactory services.

The more technologically advanced mid-mounted motor, which is a combination mechanism of internal gears, uses multiple clutch gears inside the motor housing to form a variable-speed ratchet, which increases its output torque and has higher load and climbing power. And its torque sensor is also more sensitive, sensing changes in the pedaling force of the crank, which will directly act on the central axis and accelerate faster.

Since the overall basic speed change and transmission structure of the bicycle has not been changed, the rider can also cooperate with the vehicle's original mechanical rear speed change mechanism and use it in conjunction with the central assist to achieve higher riding efficiency.
