Description

Electric bicycle conversion kit bafang bbs02 mid drive motor bafang motor

euwarehosue(001)

We have in stock in Spain and Belgium Warehouse. if you need shipping from Spain or Belgium, please contact us in advance.

Product list

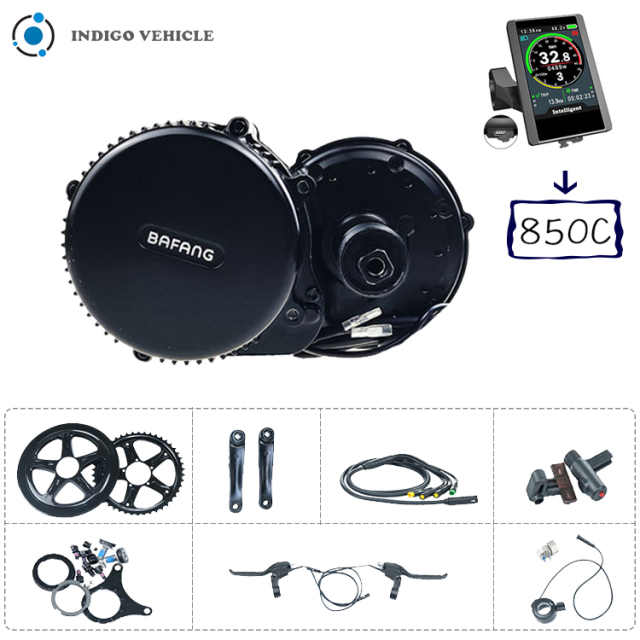

c18(001)

Product Paramenters

Motor	48v 500w
Bracket bottom length	68mm
No Load Speed(RPM)	126
Load Speed(RPM)	118
MAX Torque	100N.m
Efficiency (%)	≥ 80 %
Certificate	ROHS,CE
Operating Temperature	-20-45℃
Display	850C
Gross weight(kg)	8
Package size	250-750W: 322525cm
Warranty	1 year for the motor
IP	IP65
Noise grade	<55
Operation Temperature	-20-45℃
Reduction Ratio	1 : 21.9

Bafang motor

Large torque, fast start, wheels can slide like a bicycle, suitable for mountainous areas, low speed, and frequent urban start acceleration, braking energy saving

The mid motor can change speed conditions, has good controllability, fast acceleration, and strong climbing ability. The center-mounted motor has a center of gravity in the middle of the vehicle. When the vehicle is driving fast, it can play a role in front and rear balance. For front and rear shock absorption, the load bearing is relatively balanced,

The central motor has high power and good heat dissipation

The mid motor has transmission loss and waste of electricity. The advantage of this feature in terms of competition is that it can be connected to the gearbox, or can be adjusted at will to change the ratio of speed to torque.

Details Images

Hangzhou Indigo Vehicle has established a recognized supplier of green energy products, such as electric bicycles, lithium battery packs, electric bicycle motors, hub motors, electric scooters, various drive controllers and motors. We insist on using high-quality materials and the latest technology in our products to provide high-performance, feature-rich and low-cost solutions for personal electric transportation products and industrial applications.

We support online factory inspections or on-site inspections, provide sample services, and have professional technicians explain product details to customers, solve customers’ doubts, explain installation steps and precautions to customers in detail, support one piece of wholesale and online purchase, motors and batteries Provide a one-year warranty and serve every customer carefully.
